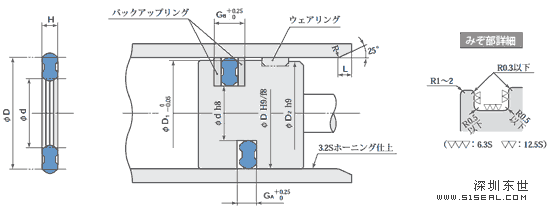

型號(hào)明細(xì)		密封件的公稱尺寸及腔體尺寸 (単位：mm）
標(biāo)準(zhǔn)(RN923)	適用(PT111)	D	d	H	GA	GB	D1	D2	L
*RGU-40A	*TBC-40×30×2	40	30	6.5	7	11	39.5	38.5	2.5
*RGU-45A	*TBC-45×35×2	45	35	6.5	7	11	44.5	43.5	2.5
*RGU-50A	*TBC-50×40×2	50	40	6.5	7	11	49.5	48.5	2.5
*RGU-55A	*TBC-55×45×2	55	45	6.5	7	11	54.4	53	2.5
*RGU-60A	*TBC-60×50×2	60	50	6.5	7	11	59.4	58	2.5
*RGU-63A	*TBC-63×53×2	63	53	6.5	7	11	62.4	61	2.5
*RGU-65A	*TBC-65×55×2.5	65	55	6.5	7	12	64.4	63	2.5
*RGU-70A	*TBC-70×60×2.5	70	60	6.5	7	12	69.4	68	2.5
*RGU-75A	*TBC-75×65×2.5	75	65	6.5	7	12	74.4	73	2.5
*RGU-80A	*TBC-80×67×2.5	80	67	8	8.5	13.5	79.4	78	3
*RGU-85A	*TBC-85×72×2.5	85	72	8	8.5	13.5	84.4	83	3
*RGU-90A	*TBC-90×77×2.5	90	77	8	8.5	13.5	89.4	88	3
*RGU-100A	*TBC-100×85×3	100	85	9	10	16	99.4	98	4
