標準材料:密封體:丁腈橡膠NBR或氟橡膠FKM,擋圈:聚酯彈性,耐磨環:聚甲醛POM或尼龍PA
應用范圍,KGB組合密封經常在作往復運動的液壓缸和活塞中用作密封元件,如:推土機、起重機、叉車、液壓閘門及農業機械等.安裝在包括ISO6547標準溝槽的閉合溝槽中.設計選用時可參考Trelleborg公司PCA、PCB系列、Parker公司ZX系列、AS公司KGD系列標準. 特點:可安裝在封閉式溝槽中,能降低加工成本,活塞總長度較短,活塞的生產成本低,密封圈和耐磨環價廉,對間隙的抗擠出能力極強,彈性密封圈不會扭曲和翻轉,良好的防泄漏性能,開切口的擋圈和導向環安裝方便.
工況條件
|
速 度
|
壓力范圍
|
溫度范圍
|
介 質
|
可供直徑范圍
|
|
0.5m/s
|
0～35MPa
|
-30℃ +110℃
|
石油基液壓油、難燃液壓液、環保安全液壓（生物油）、水和其它，取決于密封圈材料
|
20-330mm
|
| KGD 組合密封 |
|
|
| 內孔直徑 |

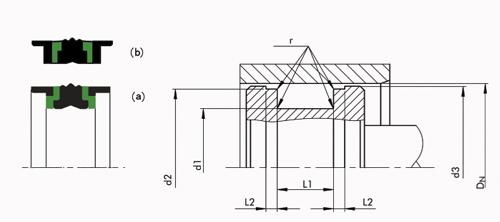

溝 槽 尺 寸
|
| DN H9 |
d1 h9 |
d2 h9 |
L1+0.2 |
d3 h11 |
L2+0.1 |
r max |
|
20
|
11
|
13.5
|
17
|
19
|
2.1
|
0.4
|
|
22
|
13
|
13.5
|
19
|
21
|
2.1
|
0.4
|
|
25
|
15
|
12
|
21
|
23
|
4
|
0.4
|
|
25
|
15
|
12.5
|
22
|
24
|
4
|
0.4
|
|
25
|
15
|
16.4
|
21.45
|
23.5
|
6.35
|
0.4
|
|
25
|
16
|
13.5
|
22
|
24
|
2.1
|
0.4
|
|
28
|
19
|
13.5
|
25
|
27
|
2.1
|
0.4
|
|
30
|
21
|
13.5
|
27
|
29
|
2.1
|
0.4
|
|
32
|
22
|
15.5
|
28
|
31
|
2.6
|
0.4
|
|
32
|
22
|
16.4
|
28.5
|
30.5
|
6.35
|
0.4
|
|
35
|
25
|
15.5
|
31
|
34
|
2.6
|
0.4
|
|
35
|
25
|
16.4
|
31.4
|
33.5
|
6.35
|
0.4
|
|
40
|
24
|
18.4
|
35.4
|
38.5
|
6.35
|
0.4
|
|
40
|
26
|
15.5
|
36
|
39
|
2.6
|
0.4
|
|
40
|
30
|
12.5
|
36
|
38
|
4
|
0.4
|
|
40
|
30
|
12.5
|
37
|
39
|
4
|
0.4
|
|
40
|
30
|
16.4
|
35.4
|
38.5
|
6.35
|
0.4
|
|
42
|
28
|
15.5
|
38
|
41
|
2.6
|
0.4
|
|
45
|
29
|
18.4
|
40.4
|
43.5
|
6.35
|
0.4
|
|
45
|
31
|
15.5
|
41
|
44
|
2.6
|
0.4
|
|
45
|
35
|
16.4
|
40.4
|
43.5
|
6.35
|
0.4
|
|
50
|
34
|
18.4
|
45.4
|
48.5
|
6.35
|
0.4
|
|
50
|
34
|
20.5
|
46
|
49
|
3.1
|
0.4
|
|
55
|
39
|
18.4
|
50.36
|
53.5
|
6.35
|
0.4
|
|
55
|
39
|
20.5
|
51
|
54
|
3.1
|
0.4
|
|
56
|
40
|
20.5
|
52
|
55
|
3.1
|
0.4
|
|
60
|
44
|
18.4
|
55.4
|
58.5
|
6.35
|
0.4
|
|
60
|
44
|
20.5
|
56
|
59
|
3.1
|
0.4
|
|
63
|
47
|
18.4
|
58.4
|
61.5
|
6.35
|
0.4
|
|
63
|
47
|
19.4
|
58.4
|
61.5
|
6.35
|
0.4
|
|
63
|
47
|
20.5
|
59
|
62
|
3.1
|
0.4
|
|
65
|
49
|
20.5
|
61
|
64
|
3.1
|
0.4
|
|
65
|
50
|
18.4
|
60.4
|
63.5
|
6.35
|
0.4
|
|
70
|
50
|
22.4
|
64.2
|
68.3
|
6.35
|
0.4
|
|
70
|
54
|
20.5
|
66
|
69
|
3.1
|
0.4
|
|
75
|
55
|
22.4
|
69.2
|
73.3
|
6.35
|
0.4
|
|
75
|
59
|
20.5
|
71
|
74
|
3.1
|
0.4
|
|
80
|
60
|
22.4
|
74.15
|
78.3
|
6.35
|
0.4
|
|
80
|
62
|
22.5
|
76
|
79
|
3.6
|
0.4
|
|
85
|
65
|
22.4
|
79.15
|
83.3
|
6.35
|
0.4
|
|
90
|
70
|
22.4
|
84.15
|
88.3
|
6.35
|
0.4
|
|
90
|
72
|
22.5
|
86
|
89
|
3.6
|
0.4
|
|
95
|
75
|
22.4
|
89.15
|
93.3
|
6.35
|
0.4
|
|
100
|
75
|
22.4
|
93.15
|
98
|
6.35
|
0.4
|
|
100
|
82
|
22.5
|
96
|
99
|
3.6
|
0.4
|
|
105
|
80
|
22.4
|
98.1
|
103
|
6.35
|
0.4
|
|
110
|
85
|
22.4
|
103.1
|
108
|
6.35
|
0.4
|
|
110
|
92
|
22.5
|
106
|
109
|
3.6
|
0.4
|
|
115
|
90
|
22.4
|
108.1
|
113
|
6.35
|
0.4
|
|
115
|
97
|
22.5
|
111
|
114
|
3.6
|
0.4
|
|
120
|
95
|
22.4
|
113.1
|
118.1
|
6.35
|
0.8
|
|
125
|
100
|
25.4
|
118.1
|
123
|
6.35
|
0.8
|
|
125
|
103
|
26.5
|
121
|
124
|
5.1
|
0.8
|
|
130
|
105
|
25.4
|
122.6
|
127.5
|
9.5
|
0.8
|
|
130
|
105
|
25.4
|
123.1
|
128
|
6.35
|
0.8
|
|
135
|
110
|
25.4
|
127.6
|
132.5
|
9.5
|
0.8
|
|
135
|
110
|
25.4
|
128.1
|
133
|
6.35
|
0.8
|
|
140
|
115
|
25.4
|
132.6
|
137.5
|
9.5
|
0.8
|
|
140
|
115
|
25.4
|
133
|
138
|
6.35
|
0.8
|
|
140
|
118
|
26.5
|
136
|
139
|
5.1
|
0.8
|
|
145
|
120
|
25.4
|
137.6
|
142.5
|
9.5
|
0.8
|
|
145
|
120
|
25.4
|
138.3
|
142.95
|
6.35
|
0.8
|
|
150
|
125
|
25.4
|
142.6
|
147.5
|
9.5
|
0.8
|
|
150
|
125
|
25.4
|
143
|
148
|
6.35
|
0.8
|
|
150
|
128
|
26.5
|
146
|
149
|
5.1
|
0.8
|
|
155
|
130
|
25.4
|
147.6
|
152.5
|
9.5
|
0.8
|
|
155
|
130
|
25.4
|
148
|
153
|
6.35
|
0.8
|
|
160
|
130
|
25.4
|
153
|
157.5
|
6.35
|
0.8
|
|
160
|
130
|
25.4
|
152.6
|
157.5
|
9.5
|
0.8
|
|
160
|
135
|
25.4
|
152.6
|
157.5
|
9.5
|
0.8
|
|
160
|
138
|
26.5
|
156
|
159
|
5.1
|
0.8
|
|
165
|
140
|
25.4
|
157.6
|
162.5
|
9.5
|
0.8
|
|
170
|
145
|
25.4
|
161.7
|
167.1
|
12.7
|
0.8
|
|
170
|
148
|
26.5
|
166
|
169
|
5.1
|
0.8
|
|
175
|
150
|
25.4
|
166.7
|
172.1
|
12.7
|
0.8
|
|
180
|
150
|
35.4
|
172.95
|
177.87
|
6.35
|
0.8
|
|
180
|
155
|
25.4
|
171.7
|
177.1
|
12.7
|
0.8
|
|
185
|
160
|
25.4
|
176.7
|
182.1
|
12.7
|
0.8
|
|
190
|
165
|
25.4
|
181.7
|
187
|
12.7
|
0.8
|
|
195
|
170
|
25.4
|
186.7
|
192
|
12.7
|
0.8
|
|
200
|
175
|
25.4
|
191.6
|
197
|
12.7
|
0.8
|
|
210
|
185
|
25.4
|
201.6
|
207
|
12.7
|
0.8
|
|
220
|
190
|
35.4
|
212.7
|
217.9
|
6.35
|
0.8
|
|
220
|
195
|
25.4
|
211.6
|
217
|
12.7
|
0.8
|
|
230
|
205
|
25.4
|
221.6
|
227
|
12.7
|
0.8
|
|
240
|
215
|
25.4
|
231.6
|
237
|
12.7
|
0.8
|
|
250
|
220
|
35.4
|
242.9
|
247.85
|
6.35
|
0.8
|
|
250
|
225
|
25.4
|
241.6
|
247
|
12.7
|
0.8
|
