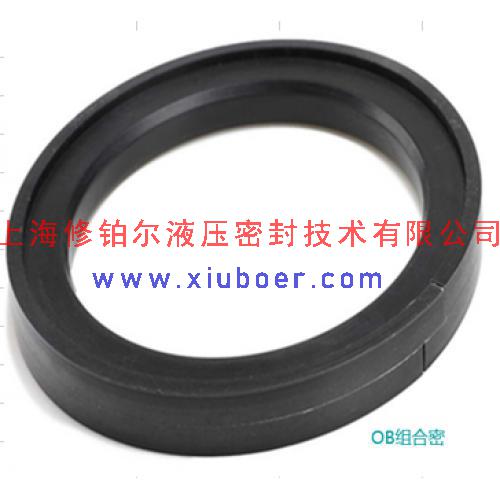

標準材料:密封環:填充改性的熱塑性材料,膨脹環:丁腈橡膠NBR
應用范圍:OB型活塞密封件主要用于重型液壓設備,特別適合于雙作用活塞,這類密封件適用的工作壓力高達50MPa,在某些情況下還可更高 設計選用時請參考Parker公司OK系列標準。

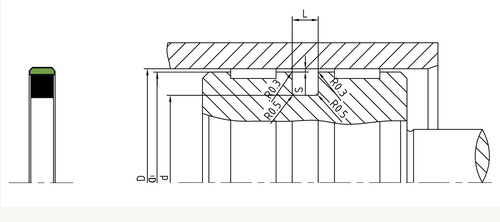

特點,形狀小,耐沖擊負荷,即使保壓很長時間后，起動和運動的摩擦都很低,由于液壓缸密封圈為開口式結構，故無需要輔助工具便容易安裝在整體式活塞上,耐磨性高,由于液壓缸密封圈特殊的材料性能，在高壓和大間隙下均有較強的抗擠壓能力,適用于按ISO 7425-1國際標準的溝槽
|
速 度
|
壓力范圍
|
溫度范圍
|
介 質
|
可供直徑范圍
|
|
1m/s
|
0～50MPa
|
-30℃ +110℃
|
液壓油、水、乳化液
|
25-1000mm
|
規格
| OB 組合密封 密封圈 |
| 訂貨號 |
D H9 |
d h9 |
L+0.2 |
D1 |
|
訂貨號 |
D H9 |
d h9 |
L+0.2 |
D1 |
| OB0250 |
25
|
16.0
|
4.2
|
24.3
|
OB1350 |
135
|
119.5
|
6.3
|
134.0
|
| OB0320 |
32
|
21.0
|
4.2
|
31.3
|
OB1350/1 |
135
|
114.0
|
8.0
|
133.8
|
| OB0400 |
40
|
29.0
|
4.2
|
39.3
|
OB1400 |
140
|
119.0
|
8.0
|
138.8
|
| OB0400/1 |
40
|
26.3
|
5.8
|
39.3
|
OB1450 |
145
|
124.0
|
8.0
|
143.8
|
| OB0500 |
50
|
34.5
|
6.3
|
49.0
|
OB1500 |
150
|
129.0
|
8.0
|
148.8
|
| OB0500/1 |
50
|
39.0
|
4.2
|
49.3
|
OB1600 |
160
|
139.0
|
8.0
|
158.8
|
| OB0600 |
60
|
41.7
|
7.0
|
59.2
|
OB1650 |
165
|
144.0
|
8.0
|
163.8
|
| OB0600/1 |
60
|
49.0
|
4.2
|
59.3
|
OB1700 |
170
|
149.0
|
8.0
|
168.8
|
| OB06300 |
63
|
44.7
|
7.0
|
62.2
|
OB1750 |
175
|
154.0
|
8.0
|
173.8
|
| OB0630/1 |
63
|
47.5
|
6.3
|
62.0
|
OB1800 |
180
|
159.0
|
8.0
|
178.8
|
| OB0700 |
70
|
51.7
|
7.0
|
69.2
|
OB1900 |
190
|
169.0
|
8.0
|
188.8
|
| OB0700/1 |
70
|
59.0
|
4.2
|
69.3
|
OB2000 |
200
|
179.0
|
8.0
|
198.8
|
| OB0750 |
75
|
54.0
|
8.0
|
74.2
|
OB2100 |
210
|
189.0
|
8.0
|
208.4
|
| OB0800 |
80
|
59.0
|
8.0
|
79.0
|
OB2200 |
220
|
199.0
|
8.0
|
218.4
|
| OB0800/1 |
80
|
64.5
|
6.3
|
79.0
|
OB2300 |
230
|
209.0
|
8.0
|
228.4
|
| OB0850 |
85
|
64.0
|
8.0
|
84.0
|
OB2400 |
240
|
225.0
|
8.0
|
238.4
|
| OB0900 |
90
|
69.0
|
8.0
|
89.0
|
OB2500 |
250
|
229.0
|
8.0
|
248.4
|
| OB0900/1 |
90
|
74.5
|
6.3
|
89.0
|
OB2600 |
260
|
239.0
|
8.0
|
258.4
|
| OB0950 |
95
|
74
|
8.0
|
94.0
|
OB2700 |
270
|
249.0
|
8.0
|
268.4
|
| OB1000 |
100
|
79.0
|
8.0
|
99.0
|
OB2800 |
280
|
255.5
|
8.0
|
278.4
|
| OB1000/1 |
100
|
84.5
|
6.3
|
99.0
|
OB2900 |
290
|
271.0
|
9.5
|
287.4
|
| OB1050 |
105
|
84.0
|
8.0
|
103.8
|
OB3000 |
300
|
272.0
|
9.5
|
297.8
|
| OB1100 |
110
|
89.0
|
8.0
|
108.8
|
OB3200 |
320
|
292.0
|
9.5
|
317.8
|
| OB1100/1 |
110
|
94.5
|
6.3
|
109.0
|
OB3300 |
330
|
302.0
|
9.5
|
327.8
|
| OB1150 |
115
|
94.0
|
8.0
|
113.8
|
OB3500 |
350
|
322.0
|
9.5
|
347.8
|
| OB1200 |
120
|
99.0
|
8.0
|
118.8
|
OB3700 |
370
|
342.0
|
9.5
|
367.8
|
| OB1250 |
125
|
109.5
|
8.0
|
123.8
|
OB4200 |
420
|
392.0
|
9.5
|
417.8
|
| OB1250/1 |
125
|
109.5
|
6.3
|
124.0
|
OB4500 |
450
|
422.0
|
9.5
|
447.8
|
| OB1300 |
130
|
109.0
|
8.0
|
128.8
|
OB4800 |
480
|
452.0
|
9.5
|
477.8
|
