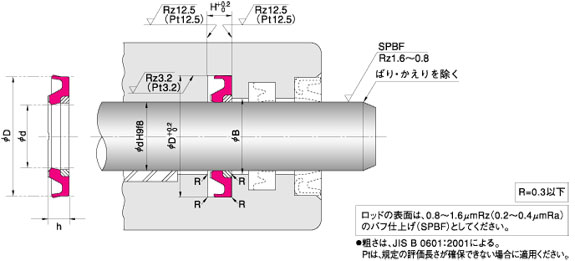

WRT型 公稱尺寸 腔體尺寸 NOK零件號(hào)
d D h φd φD φD1 H
17 20 2 17 20 19.5 2 GW0619V0
22 25 2 22 25 24.5 2 GW0620V0
27 30 2 27 30 29.5 2 GW0621V0
29 32 3 29 32 31.5 3 GW0622V0
37 40 3 37 40 39.5 3 GW0623V0
47 50 4 47 50 49.5 4 GW0610V1
59 63 4 59 63 62.4 4 GW0624V0
76 80 5 76 80 79.4 5 GW0625V0
96 100 6 96 100 99.4 6 GW0626V0
121 125 8 121 125 124.3 8 GW0580V0
136 140 8 136 140 139.3 8 GW0627V0
156 160 8 156 160 159.3 8 GW0628V0
176 180 8 176 180 179.3 8 GW0629V0
WR1型 公稱尺寸 腔體尺寸 NOK零件號(hào)
d D h φd φD φD1 H
17 20 2 17 20 19.5 2 GW0619P0
22 25 2 22 25 24.5 2 GW0620P0
27 30 2 27 30 29.5 2 GW0621P0
29 32 3 29 32 31.5 3 GW0622P0
37 40 3 37 40 39.5 3 GW0623P0
47 50 4 47 50 49.5 4 GW0610P0
59 63 4 59 63 62.4 4 GW0624P1
76 80 5 76 80 79.4 5 GW0625P0
96 100 6 96 100 99.4 6 GW0626P0
121 125 8 121 125 124.3 8 GW0580P0
136 140 8 136 140 139.3 8 GW0627P0
156 160 8 156 160 159.3 8 GW0628P0
176 180 8 176 180 179.3 8 GW0629P0
